Quick Details

  • Condition: New
  • Type: Jaw Crusher
  • Application: quarry plant, mineral processing
  • Motor Type: AC Motor
  • Power(W): 7.5kw
  • Capacity(t/h): 1-3
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Huahong
  • Model Number: PE 150*250
  • Dimension(L*W*H): 910*750*990
  • Weight: 0.7t
  • Certification: ISO CE SGS
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: jaw crusher
  • Product name: 2017 Newest Technology jaw crusher
  • Color: Customizable
  • Keyword: crusher
  • Test&Installation: Professional Engineer Assigned
  • After sale Service: Life-long Service
  • Installation: Engineer Assigned
  • Max feeding size: 1020mm
  • Spare parts supply: Life-long Provide
  • Usage: all kinds of soft or hard stones

Packaging & Delivery

Packaging Details Standard export packing, load in Containers, spares in wooden crate
Delivery Time Shipped in 7 days after payment
Product Description

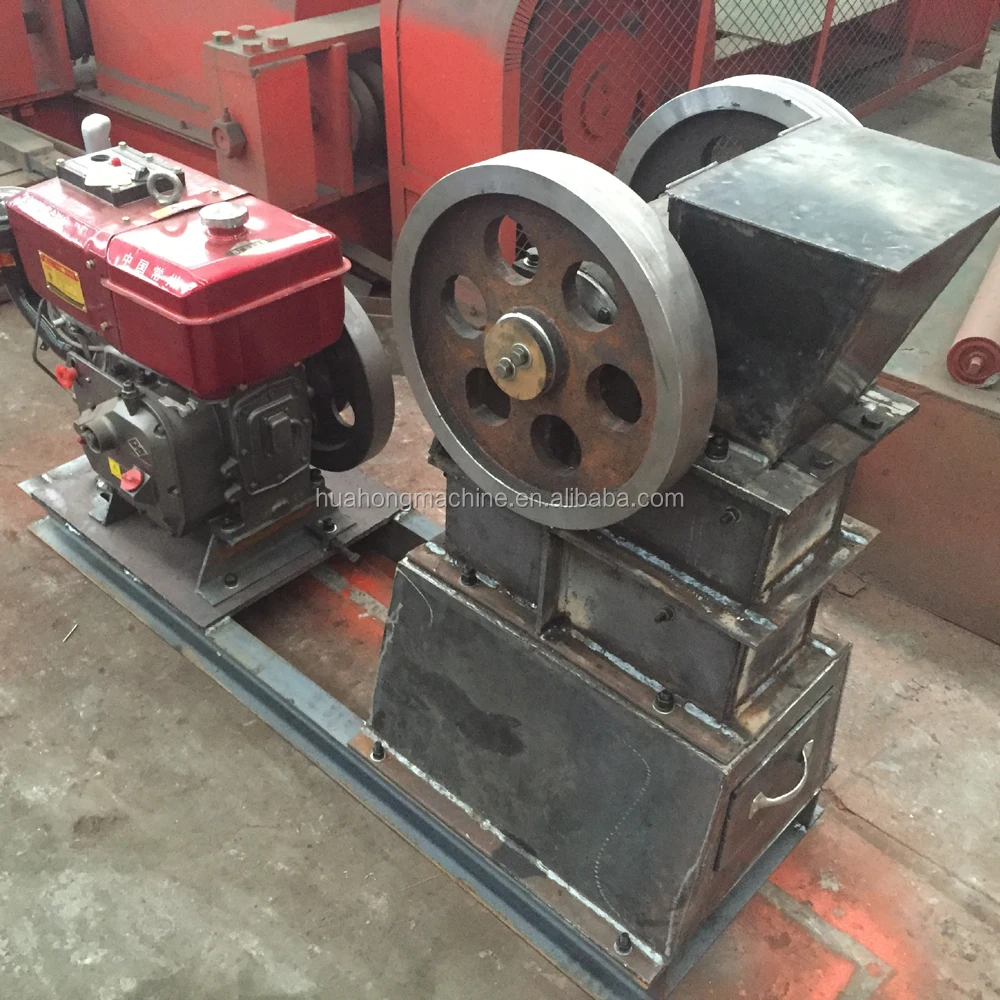

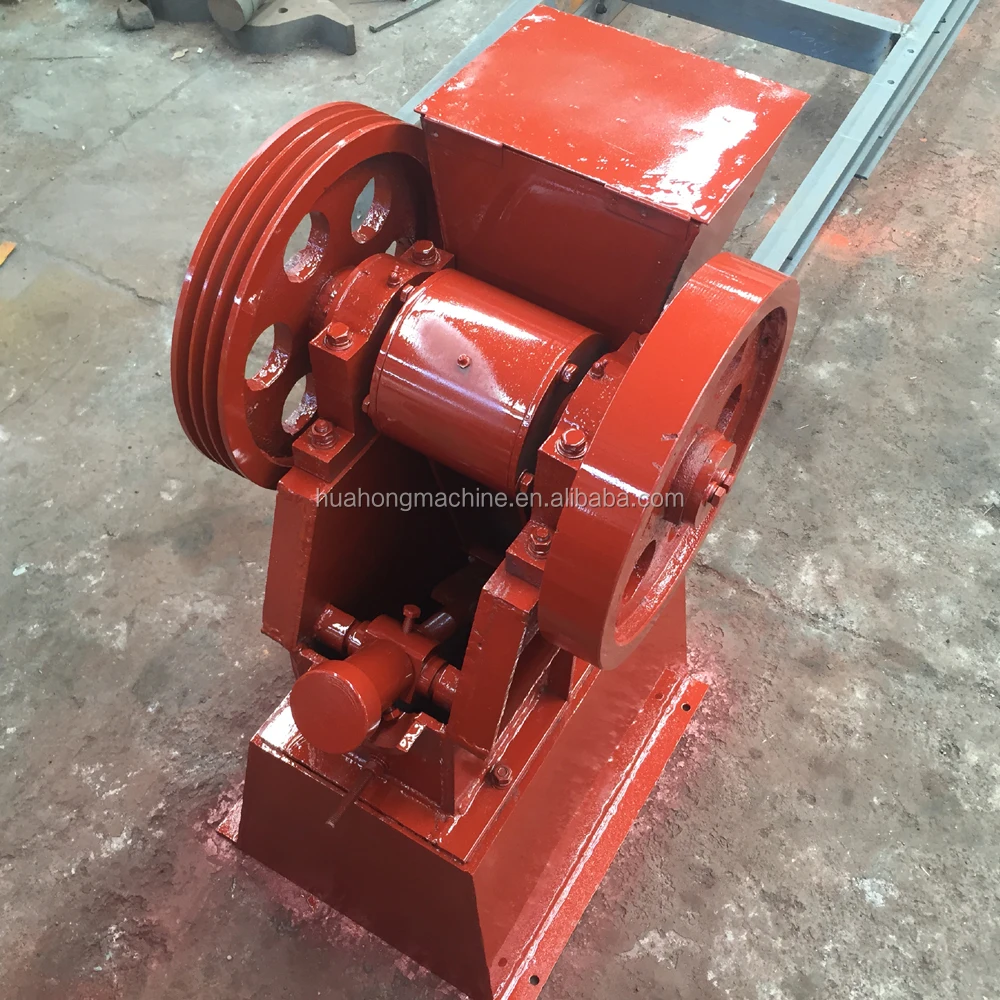

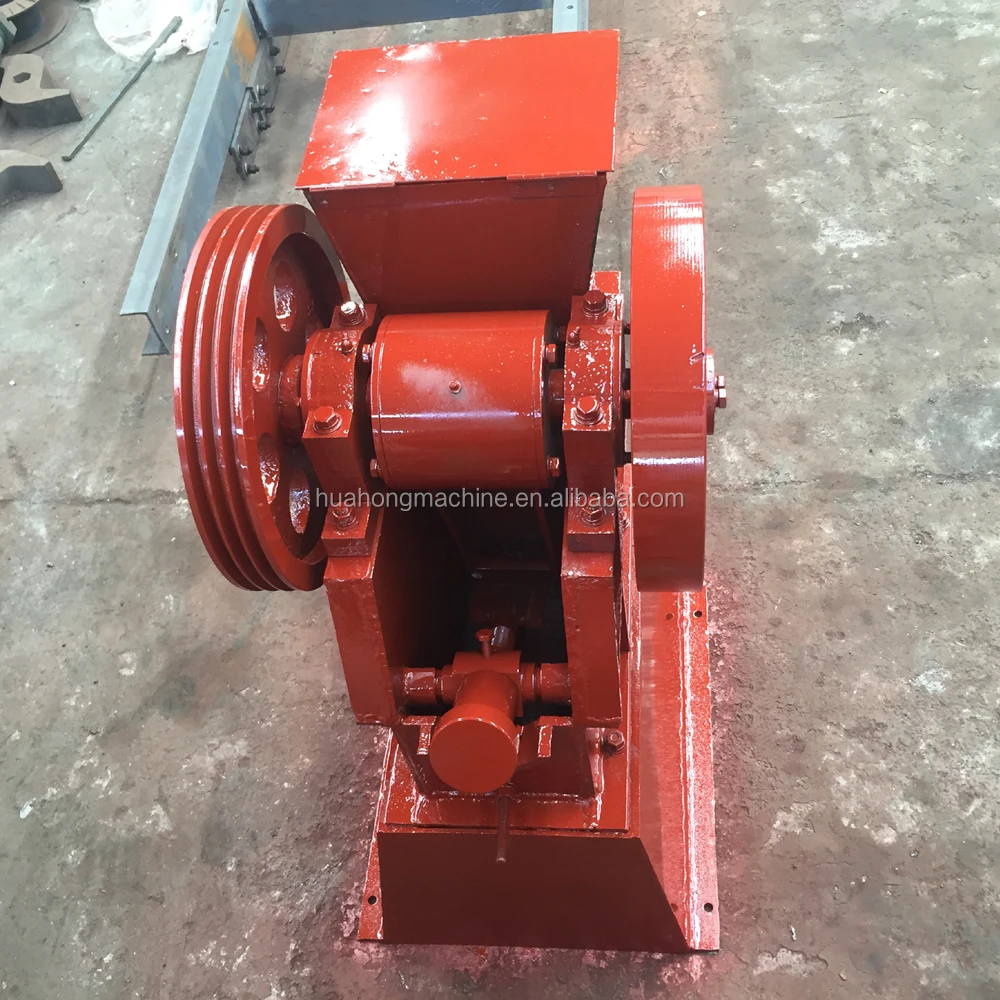

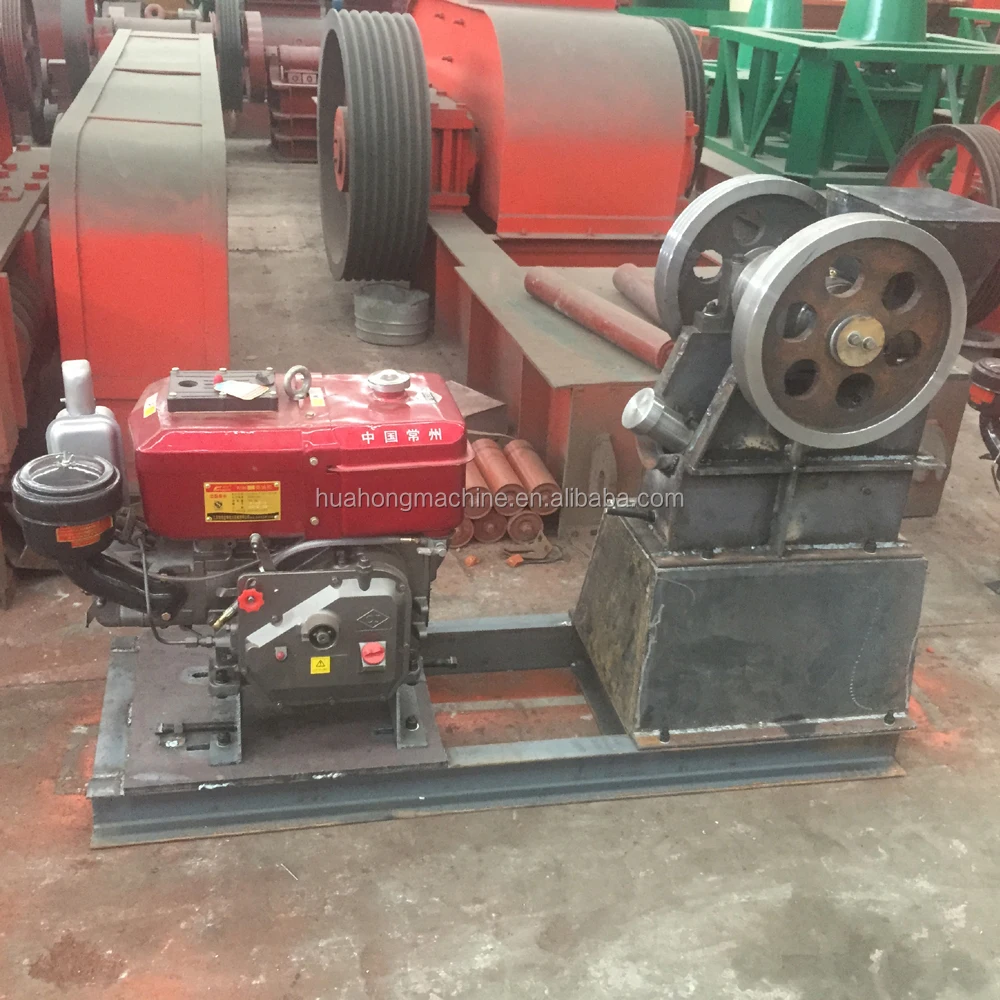

Introduction of Made in China laborotory jaw crusher with  motor ,  jaw crusher machinery:

Made in China jaw Crusher - PE series jaw crusher machinery, whose reduction ratio up to 4-6 and the finished products are even, can be widely used in breaking hard, medium-hard, soft ore, such as various kinds of ore, the solvent, slag, building stones, marble,etc. compression strength does not exceed 320Pa. This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry,etc.

Advantages of Made in China laborotory jaw crusher with  motor ,jaw crusher machinery:

1) Firm structure, stable performance, large capacity, even producing granularity.

2) With the increase of production, our jaw crusher can greatly reduce the operating costs.

3) Convenient maintenance and economical running expense.

4) The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity

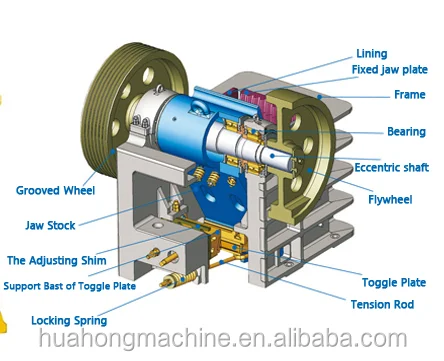

Working Principle



The working principle of jaw crusher is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates is fixed and stay still, the other moves against it by a cam or pitman mechanism.
During this movement, the materials between the two plates would be crushed progressively into small particles: while the plates move against each other, the materials would be crushed, and while plates move apart from each other, the broken materials which are smaller enough would drop through the discharging opening.  The movement of the jaw can be quite small, since complete crushing is not performed in one stroke. Due to the simple structure, jaw crusher is easy to maintain and repair. These features promote its popularity to a great extant.


Technical Parameters



ModelMax
feed
size(mm)
Adjustable
range
(mm)
Capacity
(t/h)
Eccentric shaft
rotary speed
(r/min)
Motor
power
(kw)
Total weight
(t)
Overall dimensions
(L*W*H)(mm)
PE-150×25012510-401-32505.50.8720×660×850
PE-200×30018015-502-62607.51.2910×750×990
PE-200×35018018-703-10260111.51000×870×990
PE-250×40021020-605-20300152.81300×1090×1270
PE-400×60034040-10016-602753071730×1730×1630
PE-500×75042550-10040-11027555121980×2080×1870
PE-600×750500150-20080-2402755515.82070×2000×1920
PE-600×90050065-16050-18025055172190×2206×2300
PE-750×106063080-140110-32025090-110292660×2430×2800
PE-800×1060640160-220130-33025011029.82710×2430×2800
PE-830×1060650160-220150-33625011030.72740×2430×2800
PE-870×1060660200-260190-33625011031.52810×2430×2800
PE-900×1060685230-290230-390250110332870×2420×2940
PE-900×120075095-165220-450200110523380×2870×3330
PE-1000×1200850195-265315-500200110553480×2876×3330
PE-1200×15001020150-300400-800180160100.94200×3300×3500
PEX-150×75012018-488-25320153.81200×1530×1060
PEX-250×75021025-6013-35330305.51380×1750×1540
PEX-250×100021025-6016-523303071560×1950×1390
PEX-250×120021025-6020-61330379.72140×1660×1500
PEX-300×130025020-9016-1053005515.62720×1950×1600
